Released
The most easy-to-use and versatile board
Description

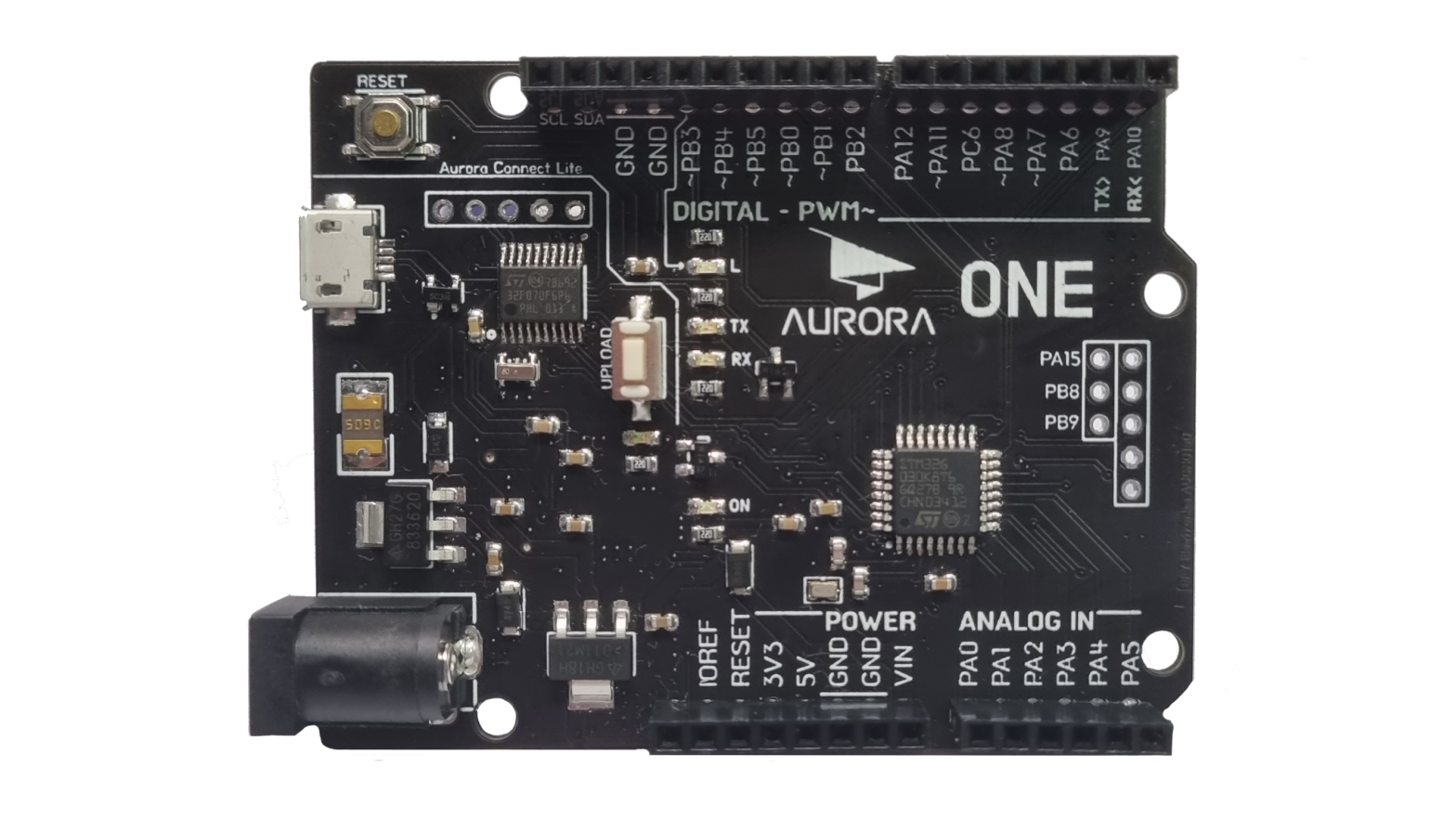

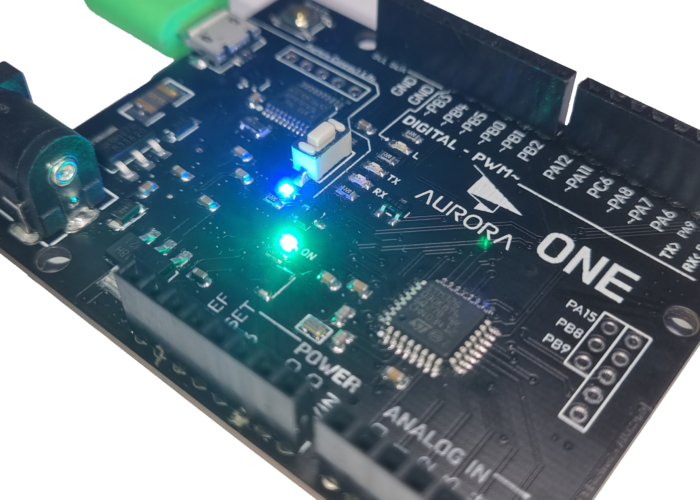

The Representative Board of Aurora Series Gen1, Aurora One, is a microcontroller board based on the STM32G030K8. The microcontroller features Arm 32-bit Cortex-M0+ Core, and it has a frequency of up to 64MHz. It has 25 input/output pins, a micro USB connection, a power jack, an SWD header, and a reset button. It also contains Aurora Connect Lite, which can help upload firmware and communicate with the computer. It is currently in the S/W development stage.
Spec
| MCU | STM32G030K8T6 |
| Frequency | Up to 64MHz |
| Operating Voltage | 3.3V |
| input voltage | 7V~13V (Recommended) |
| I/O Pins | 25 (Up to 27) |
| analog in pins | 6 (up to 10) |
| flash memory | 64Kbytes |
| sram | 8Kbytes with parity |
| LED_BUILTIN | PB3 |
Pinout
